TH400 / NP208 40 series 40 41 42 43 44 45 Speedometer Gear Housing
TH400 / NP208 40 series 40 41 42 43 44 45 Speedometer Gear Housing
Couldn't load pickup availability

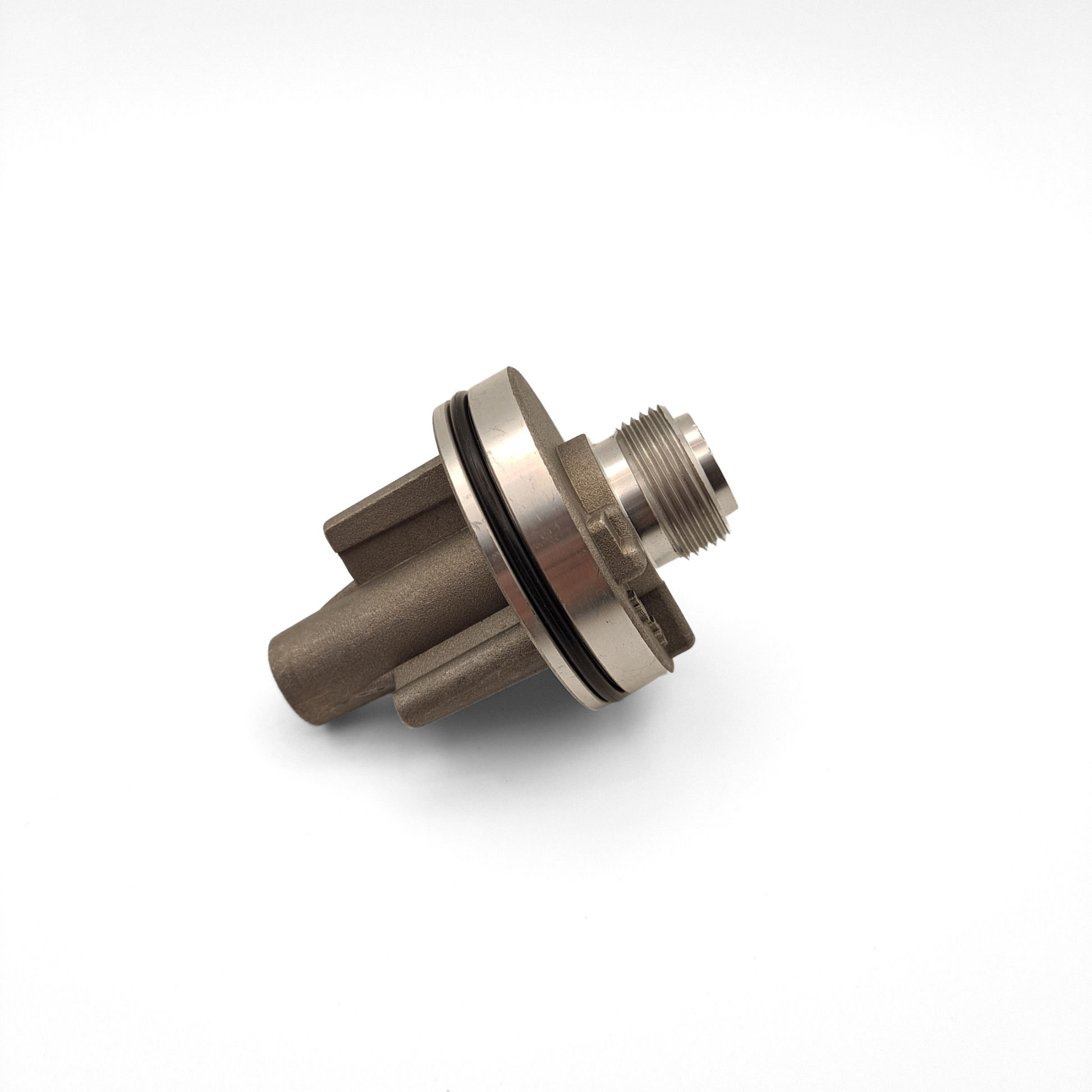

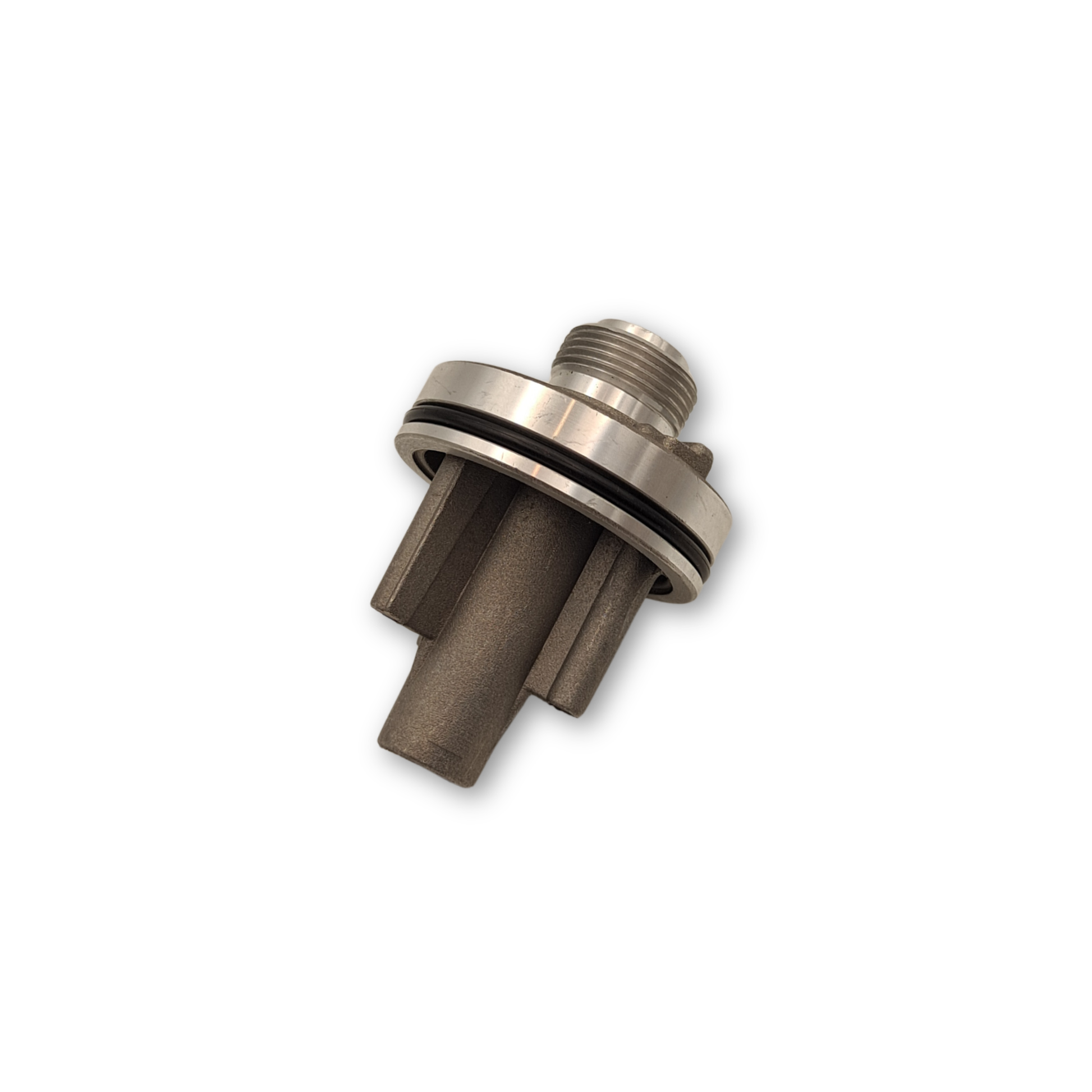

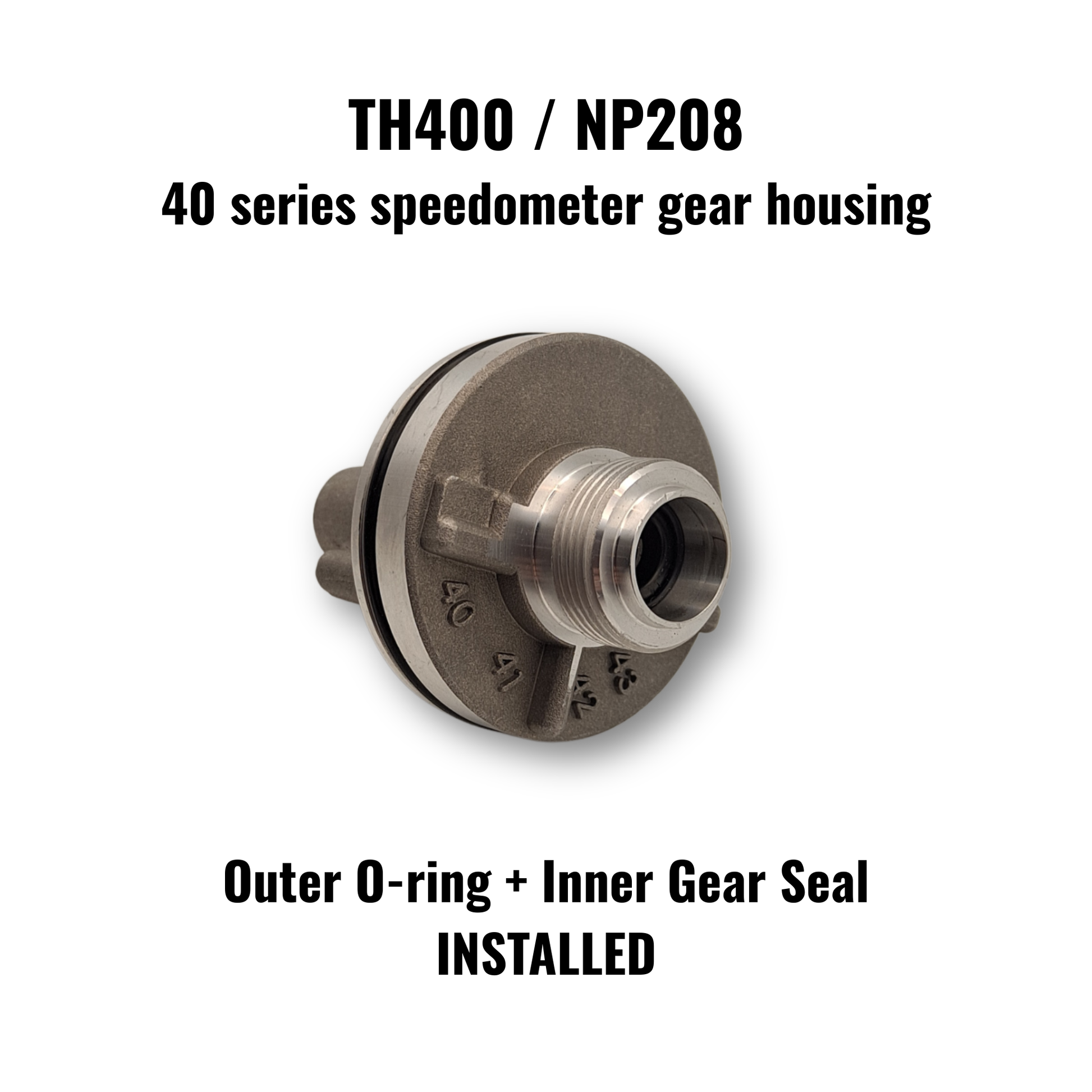

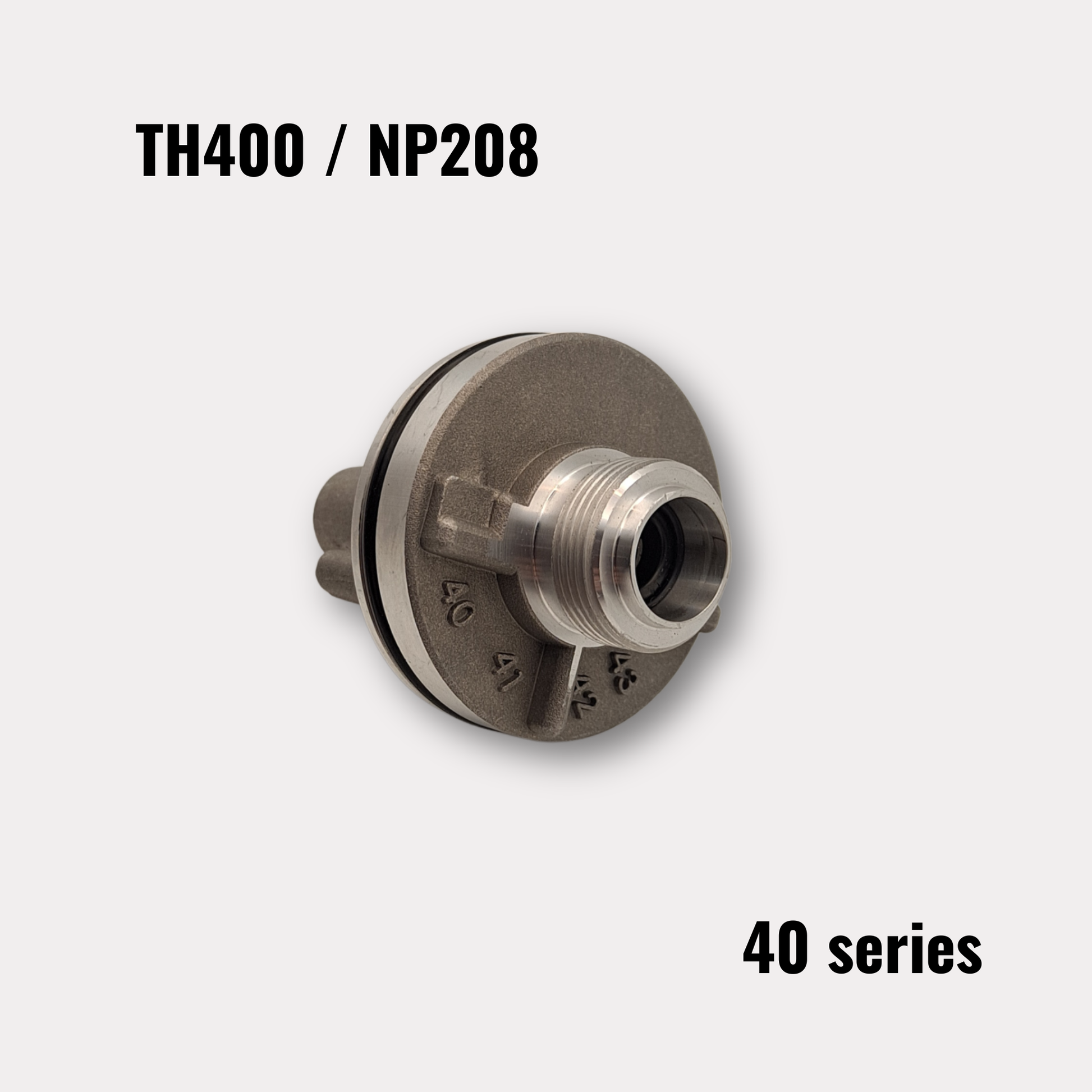

40 Series GM Turbo 400, NP208 speedometer gear housing, 1.945"
SHIPS FREE in the USA!
(Economy shipping in lower 48 states only)
Fits Driven Gear Tooth Count: 40, 41, 42, 43, 44, 45
30 series Speedometer Gear Housing available HERE!
+ NEW PART, NEVER USED
+ ALUMINUM CONSTRUCTION
+ Aftermarket Direct Replacement
Interchange part number: 1362293
Only fits driven gears with 40 series teeth counts: 40 tooth, 41 tooth, 42 tooth, 43 tooth, 44 tooth and 45 tooth.
Fits applications with a 1.945"" speedometer gear housing hole in the tail.
NOTE: 700R4 / BOP350 will need a different style speedometer gear housing.
700R4 / BOP350 40 series housing available HERE
GM TH400 / NP208 driven gear tooth counts and colors:
(Do not acquire a gear based on color alone, if you could use some assistance feel free to reach out to jim@speedometer.world )
|
|
|
|
|
|
|
35 tooth |
Orange |
|
|
Yellow |
|
36 tooth |
Tan / White |
|
|
Dark Green / Green |
|
37 tooth |
Red / Maroon |
|
|
Dark Blue / Blue |
|
38 tooth |
Light Blue / Blue |
|
|
Grey / Gray |
|
39 tooth |
Brown |
|
|
Olive / Green |
WE CAN HELP!
📧 Having trouble with your speedometer not agreeing with the GPS?
Send us a brief message with your current application specs and we can help you mastermind a solution!
