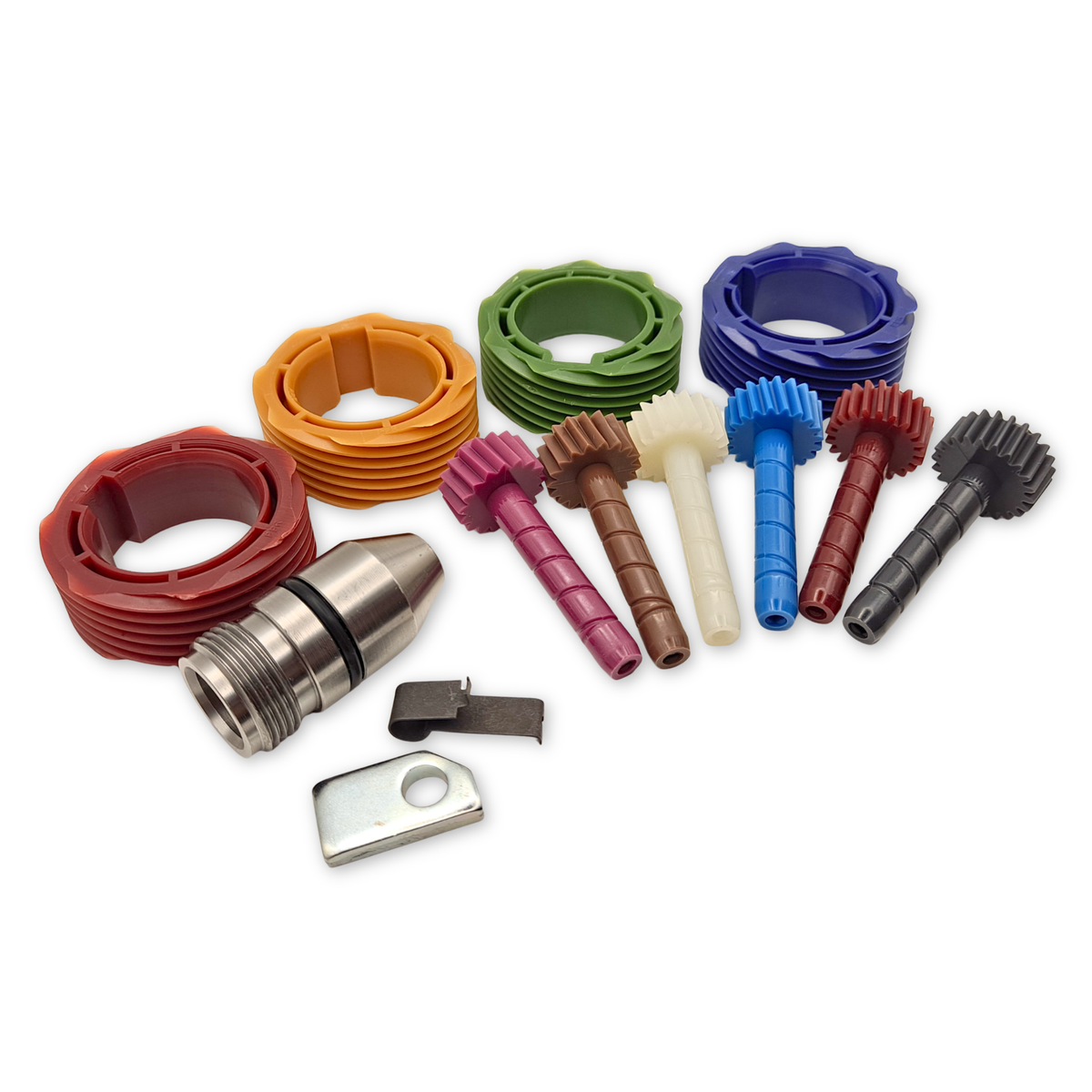

TH350 Speedometer Gear Set, 4x Drive Gear, 6x Driven Gear, Housing, Clip, Retainer
TH350 Speedometer Gear Set, 4x Drive Gear, 6x Driven Gear, Housing, Clip, Retainer
Couldn't load pickup availability

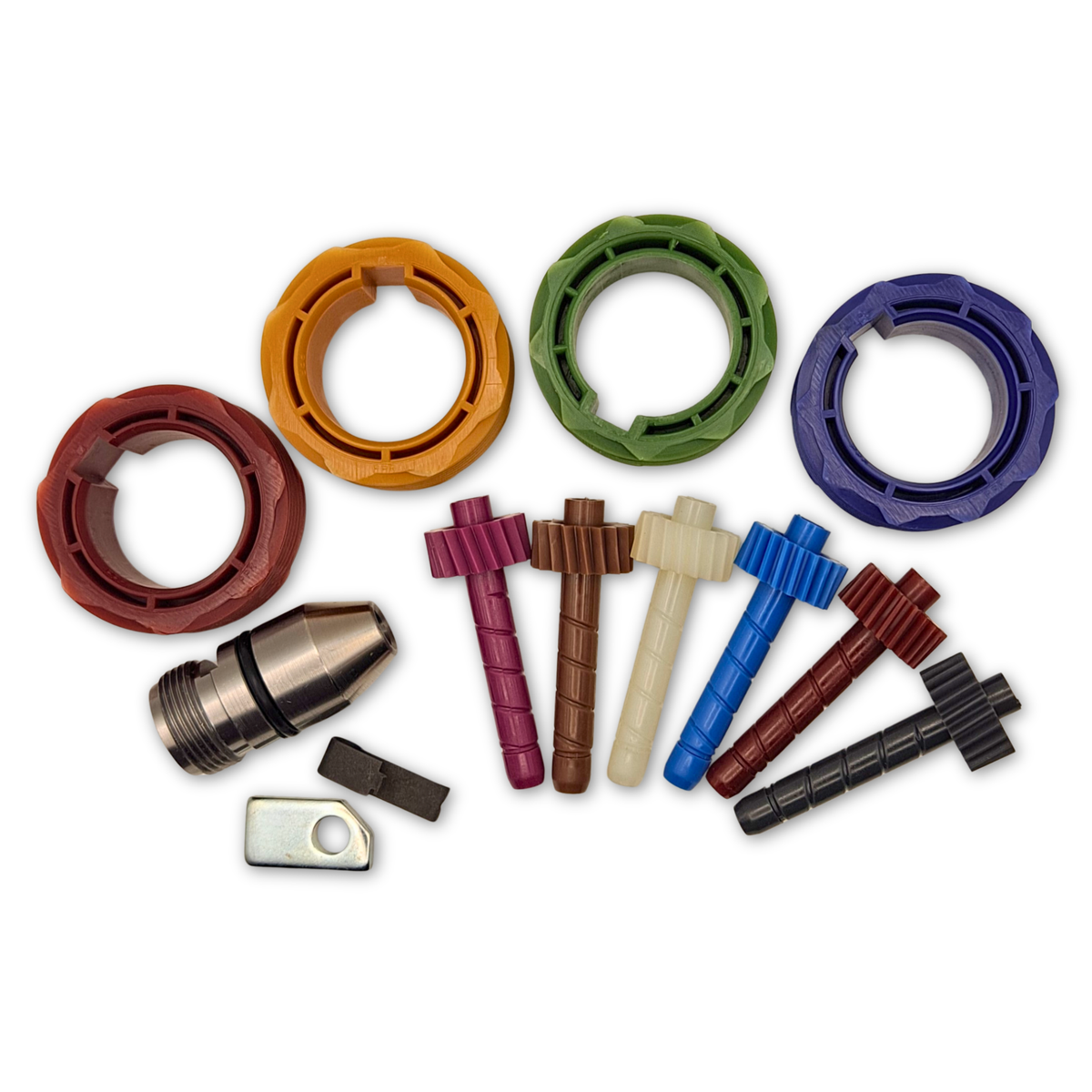

Set of all 4x CHEVY Turbo 350 Drive Gears with 6x CHEVY TH350 Driven Gears, 1x Steel Bullet Housing with 1x Zinc Coated Retainer and 1x Drive Gear Clip.
Includes 1x 5/16" Drive Gear Clip.
Driven Gear Tooth Count: 17, 18, 19, 20, 21 and 22 Teeth
Color: Purple, Brown, Natural, Blue, Maroon, and Gray
Steel Bullet Housing with inner metal clad seal and outer O-ring installed.
Includes upgraded Zinc Coated housing retainer.
SHIPS FREE in the USA!
(Economy shipping in lower 48 states only)
+ BRAND NEW PARTS - NEVER USED.
Manufactured with smooth, non-grainy, sturdy and durable materials.
+ AFTERMARKET DIRECT REPLACEMENT.
OEM Interchange part number: 6271537, 12338033, 6261782, 6261785, 6261781, 3987917, 3987918, 3987919, 3987920, 3987921, 3987922.
Used with automatic transmissions featuring a smaller 1.86" "bullet style" speedometer gear housing hole in the tail. Bullet Style Housing included in this set!
Speedo gears used for Mechanical Cable type applications such as TH350 / TH350C.
(Can fit Saginaw / Richmond transmissions if the shaft is a smooth bore, non splined variant)
Single count Chevy 350 Drive Gears available HERE!
Single count TH350 Driven Gears available HERE!
CHEVY TH350 / TH350C drive gear teeth counts and colors:
(Do not acquire a gear based on color alone, if you could use some assistance feel free to reach out to jim@speedometer.world )
|
7 tooth Red (Pink)
|
|
Orange / Dark Yellow
|
|
Green
|
|
Blue (Purple)
|

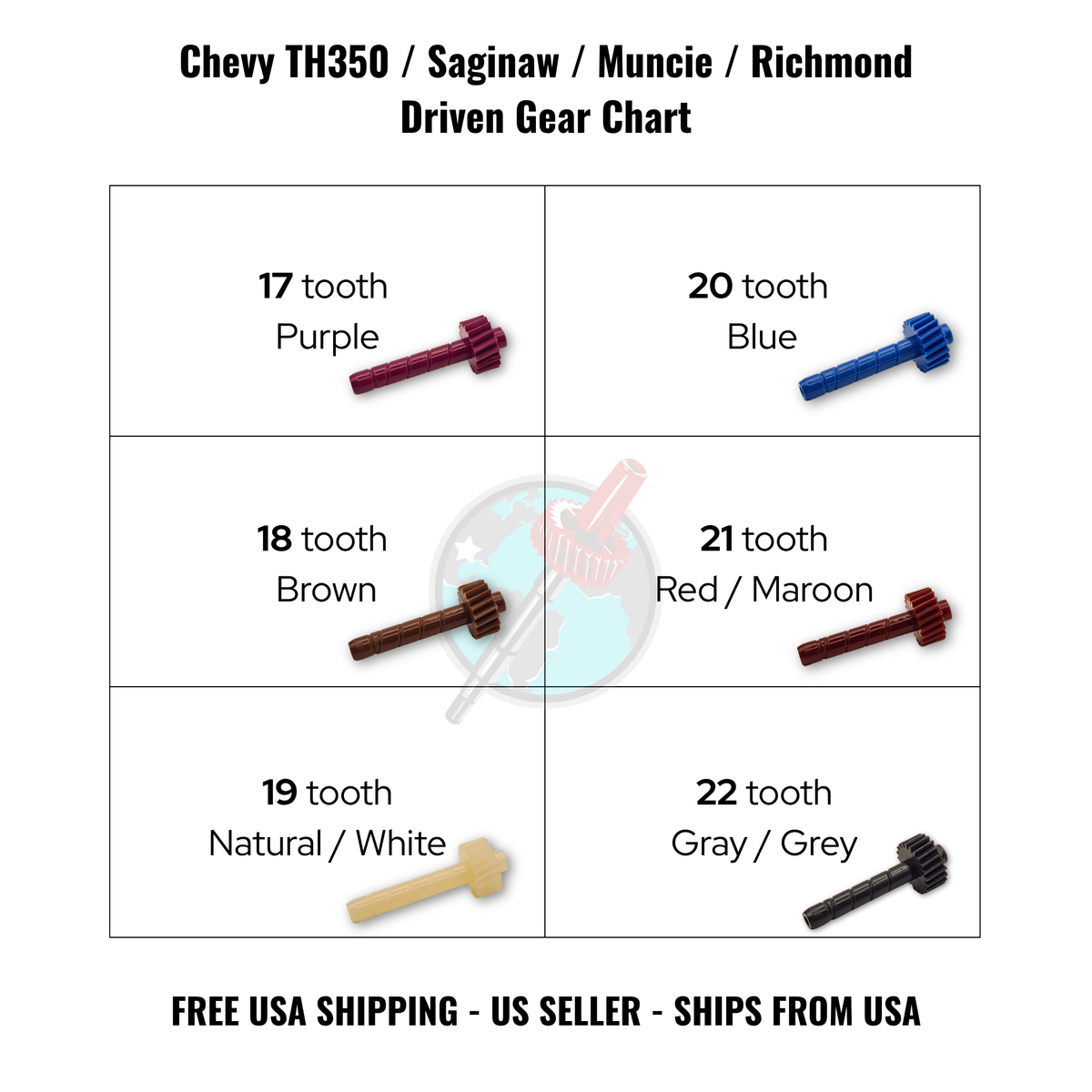

Chevy 350 driven gear tooth counts and colors:
|
|
|
|
18 tooth, Brown |
21 tooth, Red / Maroon |
|
19 tooth, Natural / White |
22 tooth, Gray / Grey
|
WE CAN HELP!
📧 Having trouble with your speedometer not agreeing with the GPS?
Send us a brief message with your current application specs and we can help you mastermind a solution!
