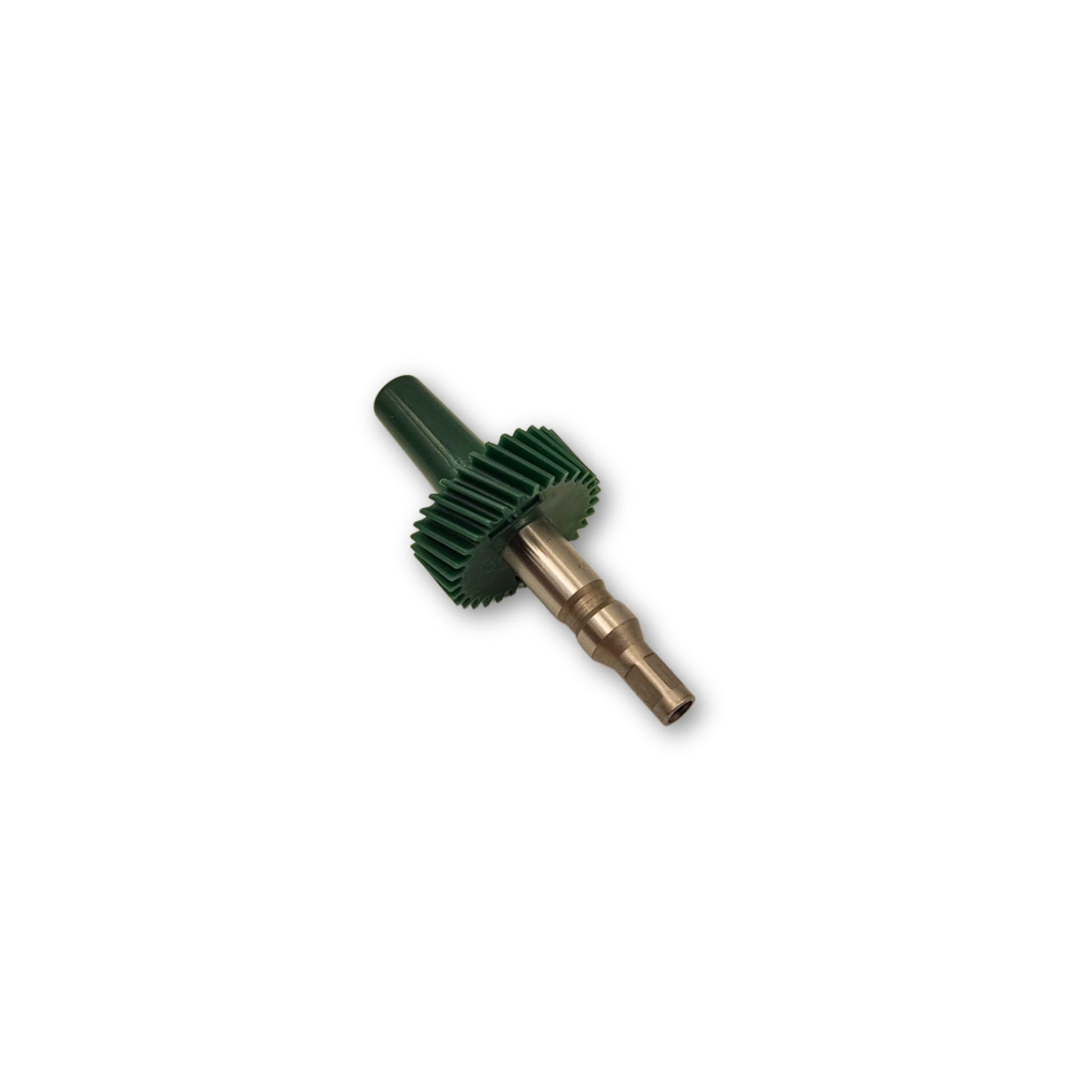

Jeep 31 Tooth Short Shaft Speedometer Driven Gear, Dark Green Gear

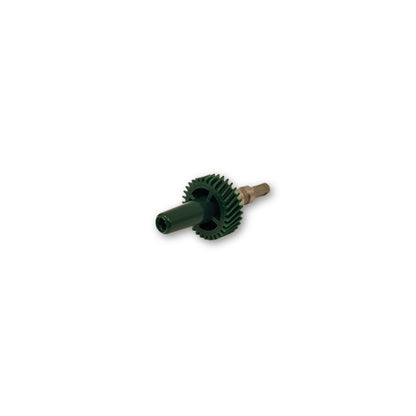

Green 31 tooth Speedo Driven Gear for Jeeps, short shaft.

Tooth Count: 31 Teeth

Dark green speedo driven gear for applications using a speed sensor, such as seen on a New Process 231 and others.

*Application fitment may vary, if unsure please reach out before purchasing

You may need to switch driven gears after changing or replacing your tires and/or wheels.
Many tire makers build their tires differently, so a 35-inch tire from one company, compared to another, may vary as much as a full inch.
Causing a fluctuation in the accuracy of your speedometer.

To calculate which driven gear you need, gather your Drive Gear Tooth Count (13 is common for Jeep), your Rear End Ratio, and your Actual Tire Size, and head over to the Speedometer Driven Gear Calculator.

For your driven gear to read correctly your Jeep speed sensor needs to be indexed properly.
The index mark always goes straight down (6 o'clock).
Match the mark you need, to the tooth count you are currently using.


NOTE: Short Shaft Driven Gears will only work with Electronic Sensor type applications.
Long Shaft Driven Gears are needed for Mechanical Cable operated applications.
If your application has an in-line speed sensor that will connect to the mechanical housing, it will take the long shaft gear, otherwise, all other speed sensors will use a short shaft.

JEEP Long Shaft 31 tooth Driven Gears available HERE!

Dodge / Jeep driven gear tooth counts and colors:
(Do not acquire a gear based on color alone, if you could use some assistance feel free to reach out to jim@speedometer.world )

Tooth counts available 26 -43, browse our shop for more JEEP speedometer solutions!
