Jim's Speedometer World

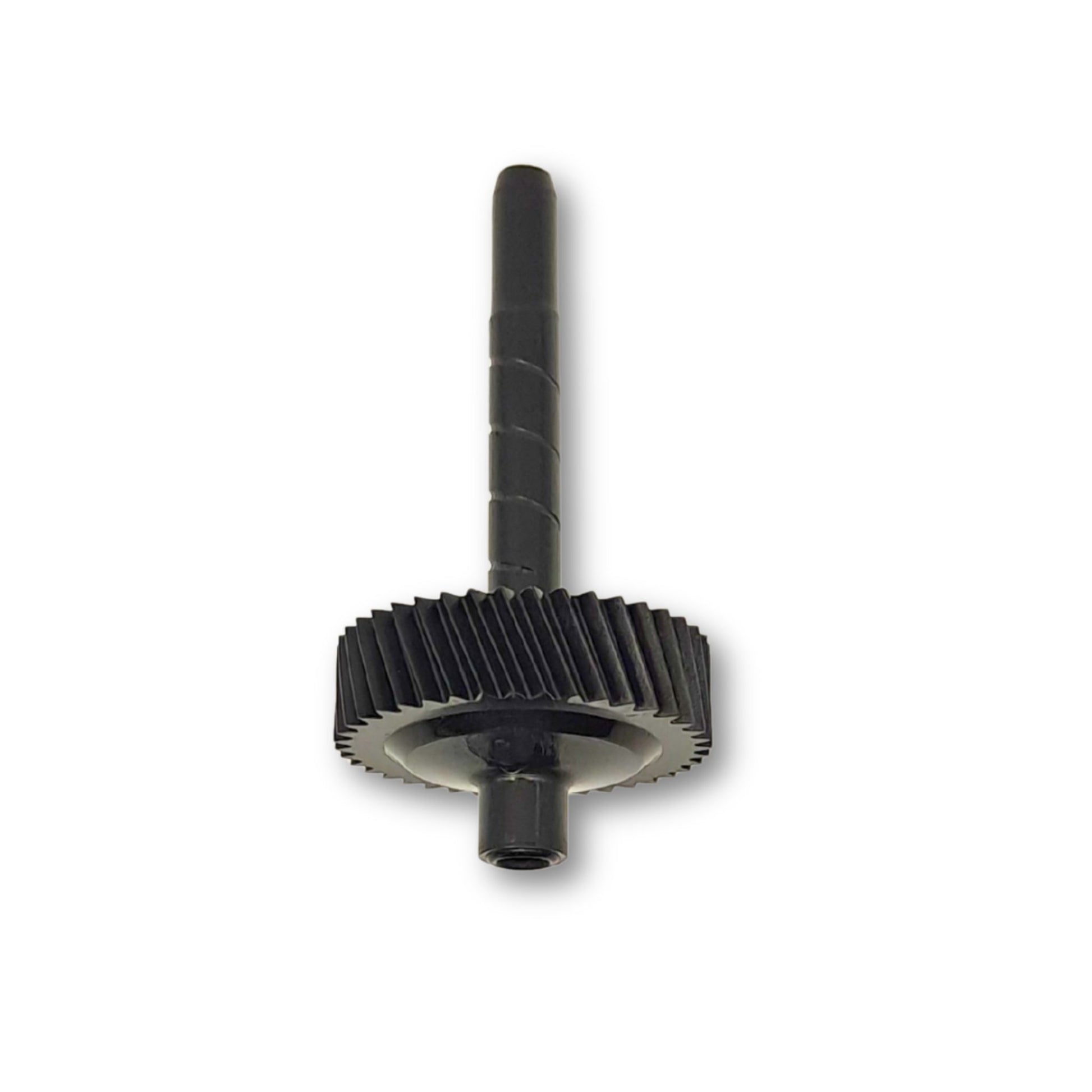

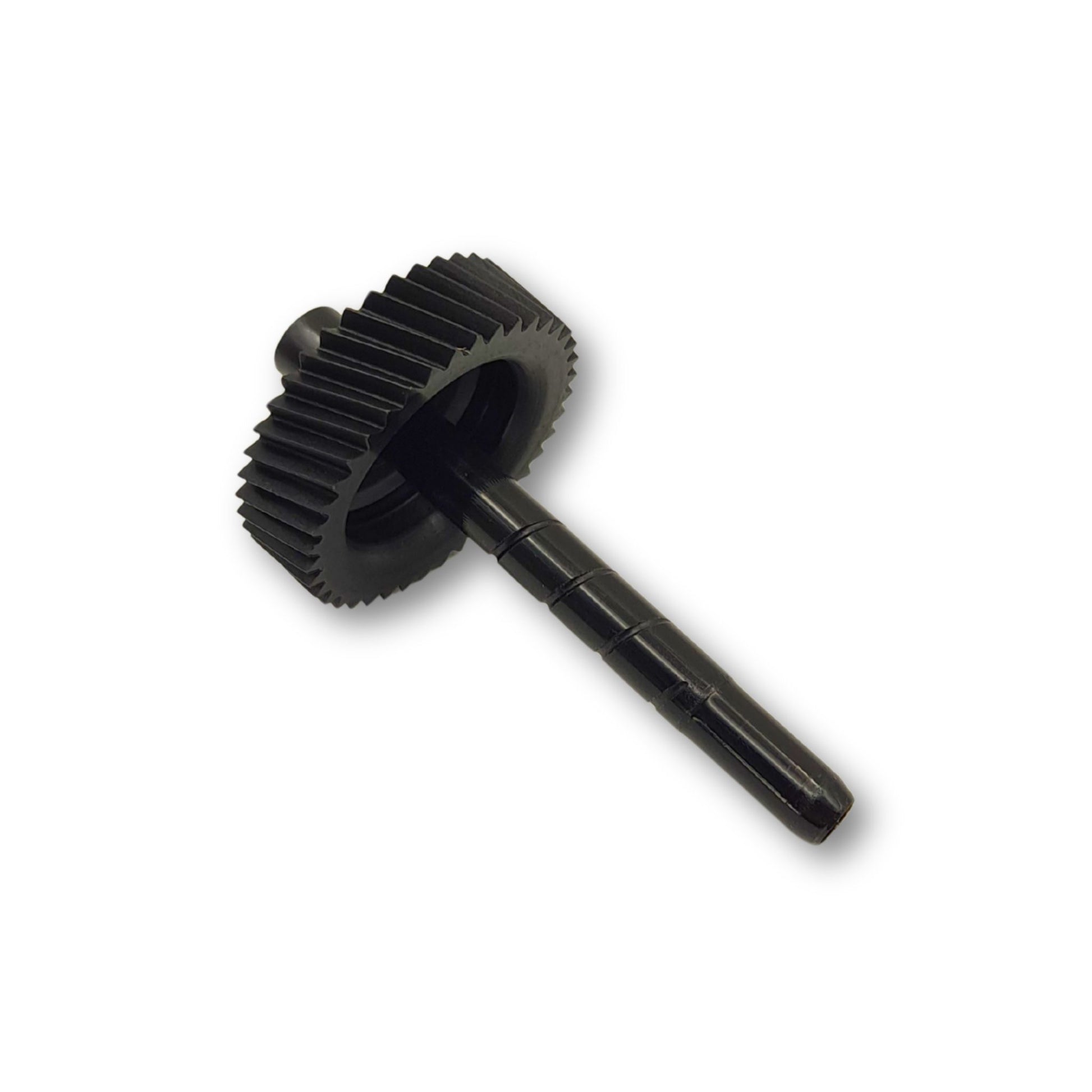

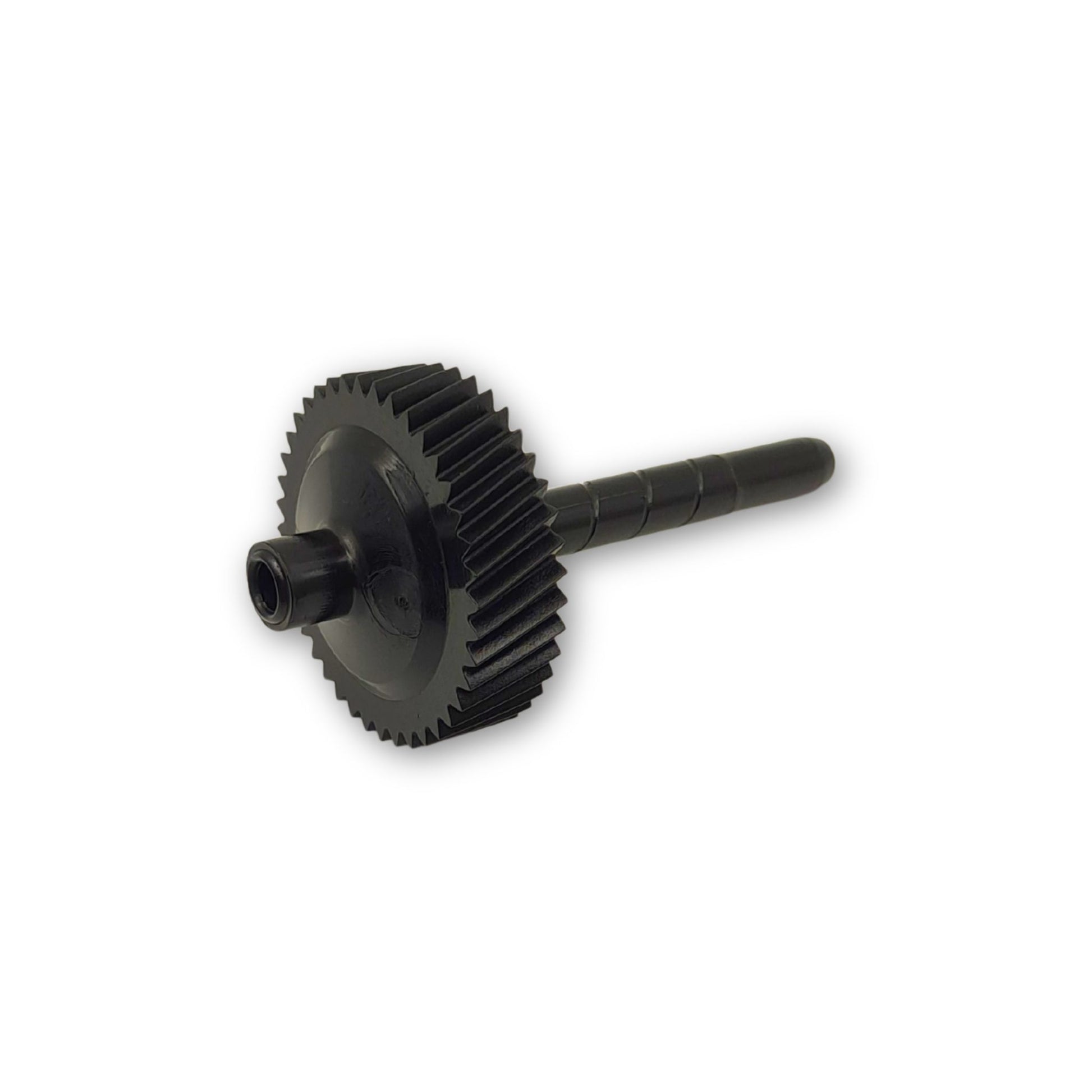

40 Tooth Speedo Driven Gear for GM 700R4 TH400 BOP350 NP208

40 Tooth Speedo Driven Gear for GM 700R4 TH400 BOP350 NP208

$17.00 USD
$22.00 USD $17.00 USD
SALE SOLD OUT

  • FREE USA SHIPPING IN LOWER 48 STATES
  • Available in 34 - 45 Tooth Counts
  • Separate Gear Housing needed for 34/39 and 40/45


ALL OUR AVAILABLE GM DRIVEN GEARS HERE!



Tooth Count: 40 Teeth

Color: Black


SHIPS FREE in the USA!
(Economy shipping in lower 48 states only)



NEW HEAVY DUTY PLASTIC CONSTRUCTION
Aftermarket Direct Replacement

This 40 Tooth Speedometer Driven Gear fits GM 700R4 / TH400 / BOP350 / NP208 Transfer Case applications.

Fits automatic transmissions and transfer cases with a 2" speedometer gear housing hole in the tail.

Black gear used for Mechanical Cable type applications such as 700R4 or TH400 as well as New Process 208's.

Matching 700R4 Speedometer Housing also available, sold separately.

40/45 Housing available HERE

NOTE: TH-400 / NP208 will need a different style speedometer gear housing.

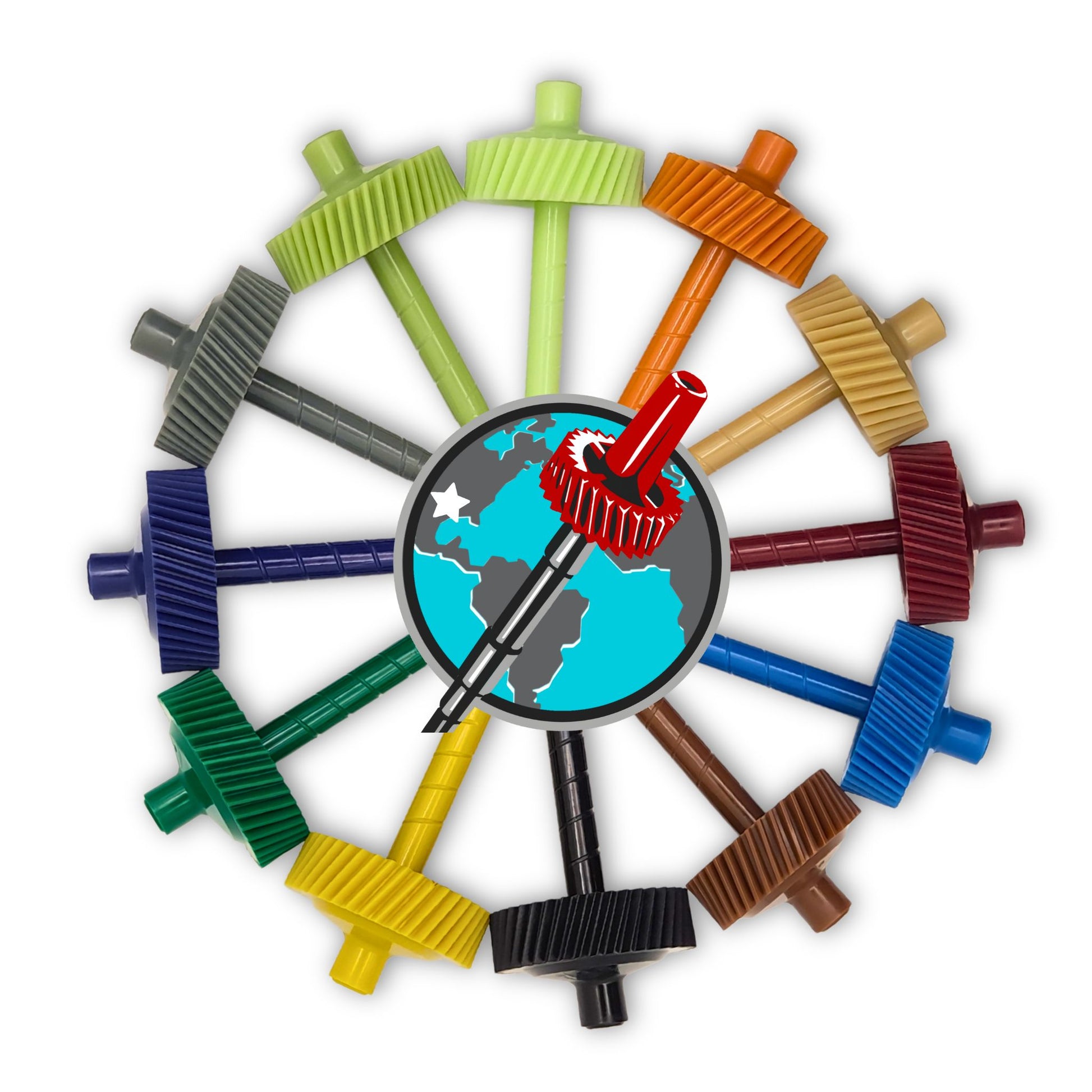

GM 700R4 driven gear tooth counts and colors:
(Do not acquire a gear based on color alone, if you could use some assistance feel free to reach out to jim@speedometer.world )


34 tooth


Light Green / Green



40 tooth


Black


35 tooth


Orange



41 tooth


Yellow


36 tooth


Tan / White



42 tooth


Dark Green / Green


37 tooth


Red / Maroon



43 tooth


Dark Blue / Blue


38 tooth


Light Blue / Blue



44 tooth


Grey / Gray


39 tooth



Brown




45 tooth


Olive / Green



View full details

WE CAN HELP!

📧 Having trouble with your speedometer not agreeing with the GPS?

Send us a brief message with your current application specs and we can help you mastermind a solution!
