2x Reseal Kit for 700R4 Speedometer Gear Housings, fits BOP350 ( 4 piece )

Replacement seals for 700R4 / BOP350 speedometer gear housings. ( 4 piece )

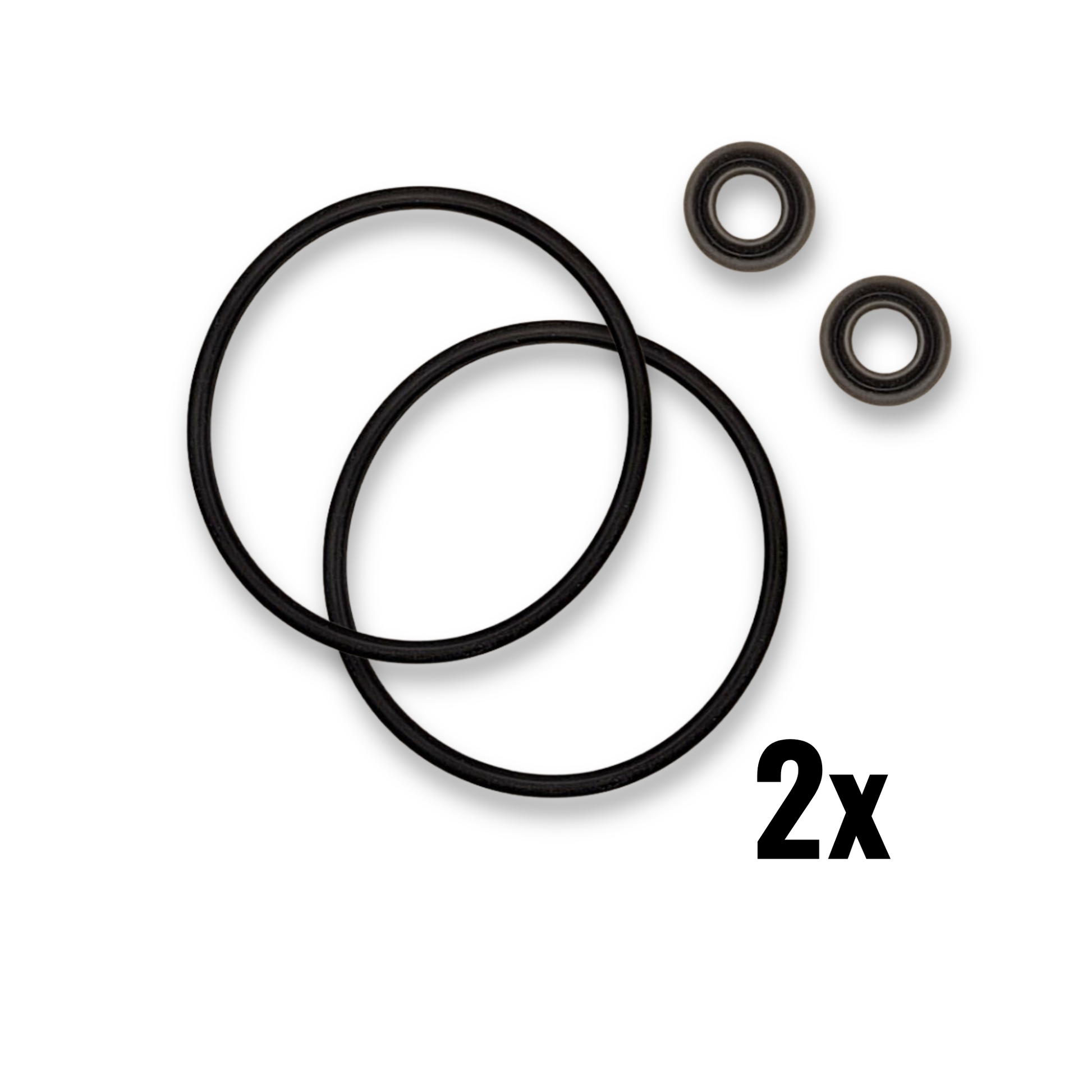

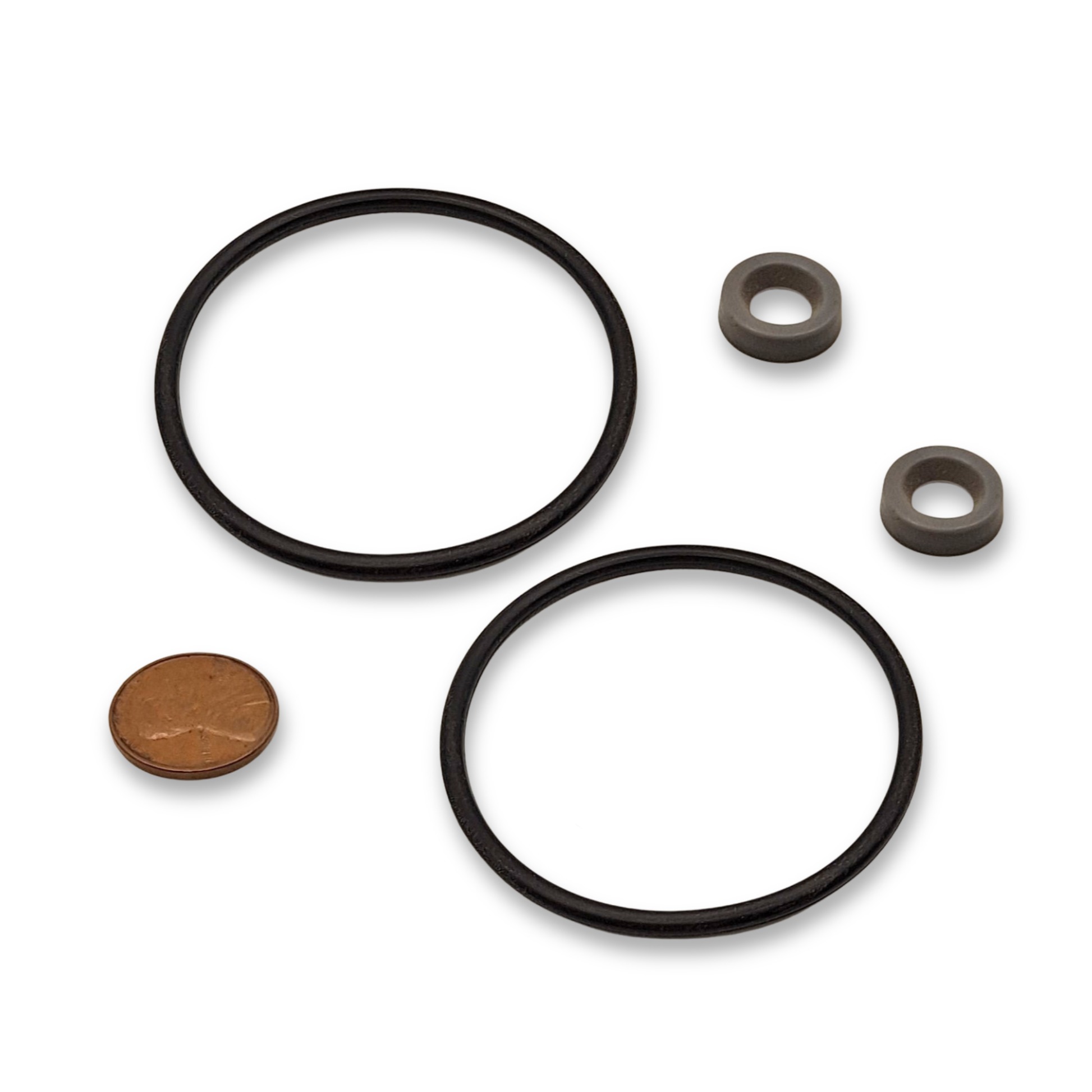

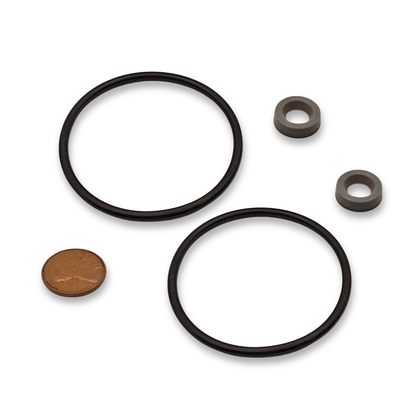

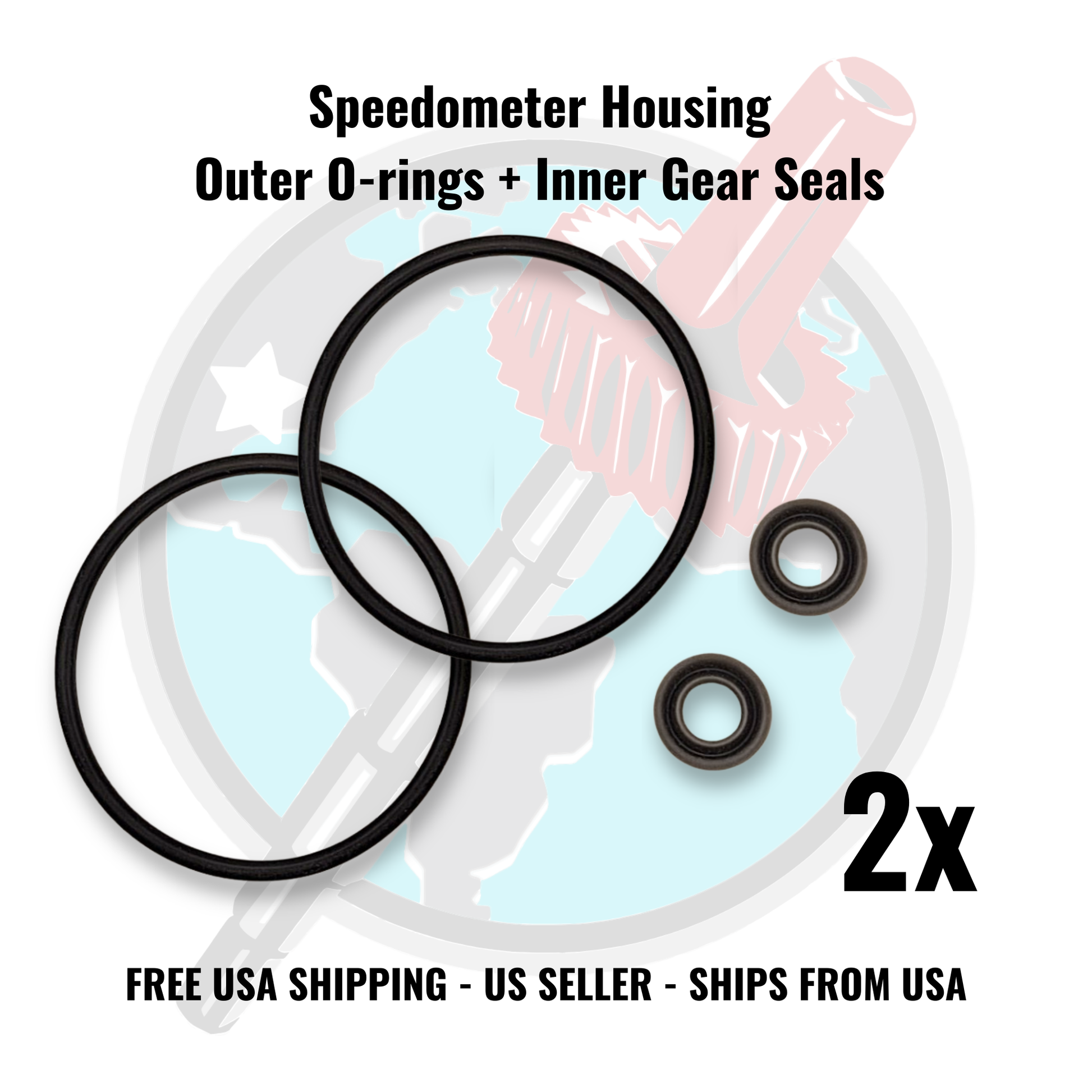

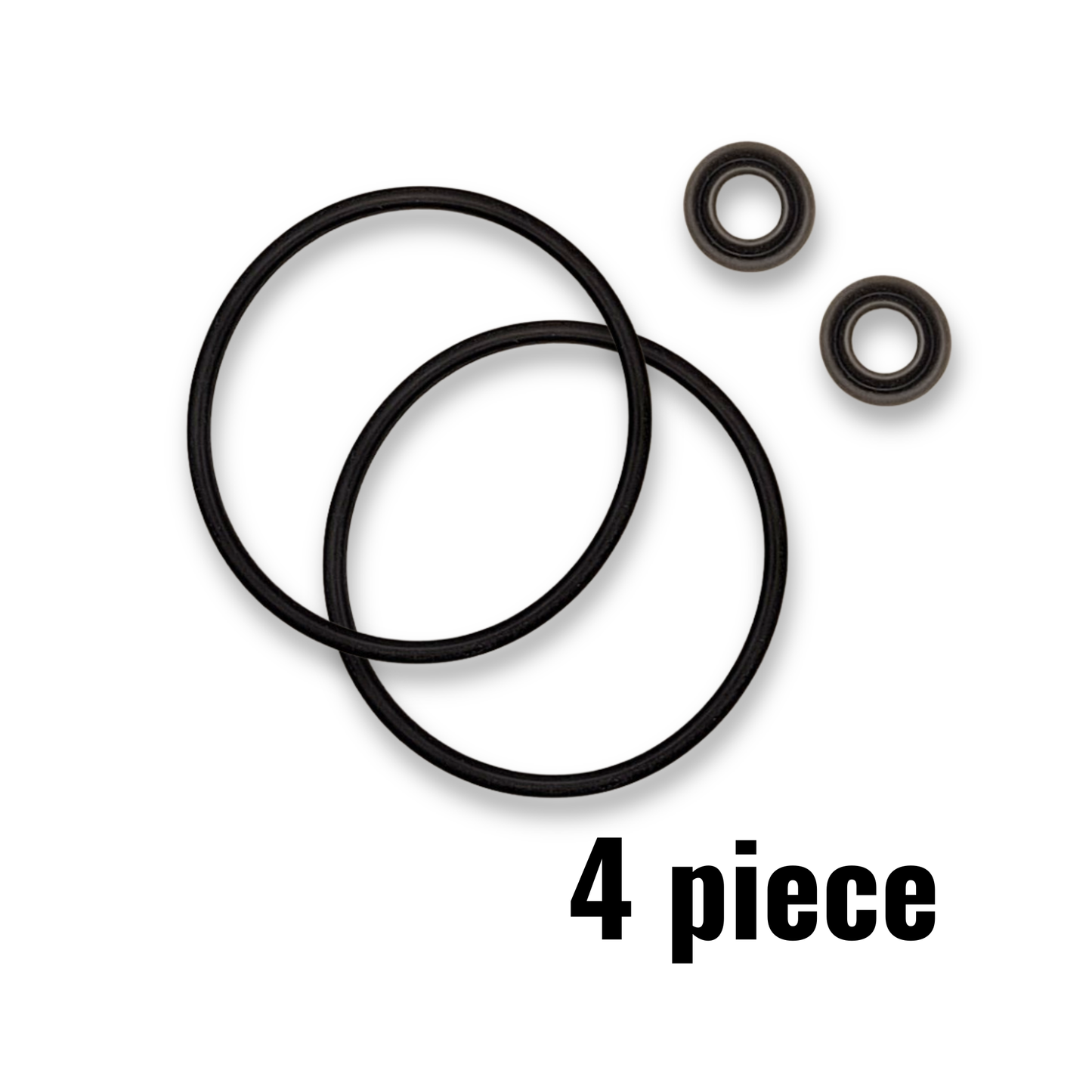

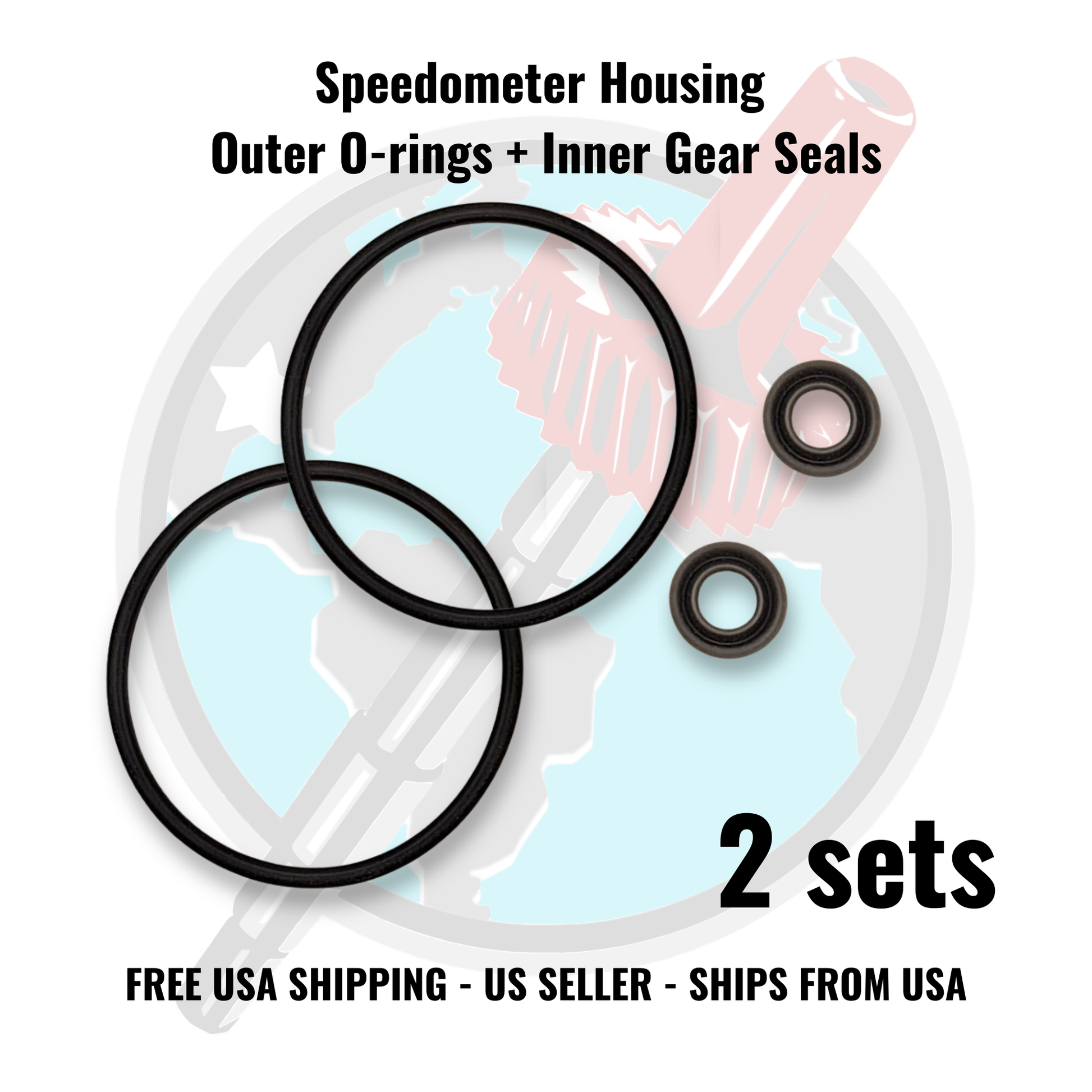

Set includes TWO 2" black outer O-ring, and TWO gray inner gear seal ONLY.
Retainer wire NOT included, must re-use your own.

SHIPS FREE in the USA!
(Economy shipping in lower 48 states only)

Both the O-ring and the inner seal fit housing applications with a 2" speedometer gear housing hole in the tail.
Both the O-ring and the inner seal fit the 30 series 700R4 housing as well as the 40 series 700R4 housing.
Only the inner gear seal will also fit 2004R bullet style housings ( not TH350 ), as well as 30 series TH400 housings and 40 series TH400 housings.

NOTE:
Outer O-ring will not fit TH-400 / NP208 housings.
Outer O-ring will not fit 2004R / TH350 or other bullet style housings.


If you are experiencing leaks coming from or around your speedometer gear housing, a worn or cut seal may be the cause.
An old or damaged driven gear can also cause a seal leak, even when new seals are installed. Replacing your driven gear may be necessary to stop the leak.

Carefully remove old, worn seals and reinstall new replacement seals to prevent further leaks. Make sure the inner gear seal is installed with the lip facing up (facing out).
This will ensure the driven gear will not push/get hung on the lip, causing an improper stem seal.
