Bullet Style 2004R Speedometer Gear Housing with Retainer

$55.00 USD

Sale Sold out

Choose Housing Retainer! Regular Aluminum Retainer Upgraded Zinc Retainer

Speedometer Driven Gear Housing "Bullet" for 200-4R transmissions.
Inner stem seal and outer O-ring included.

Choose your retainer type!

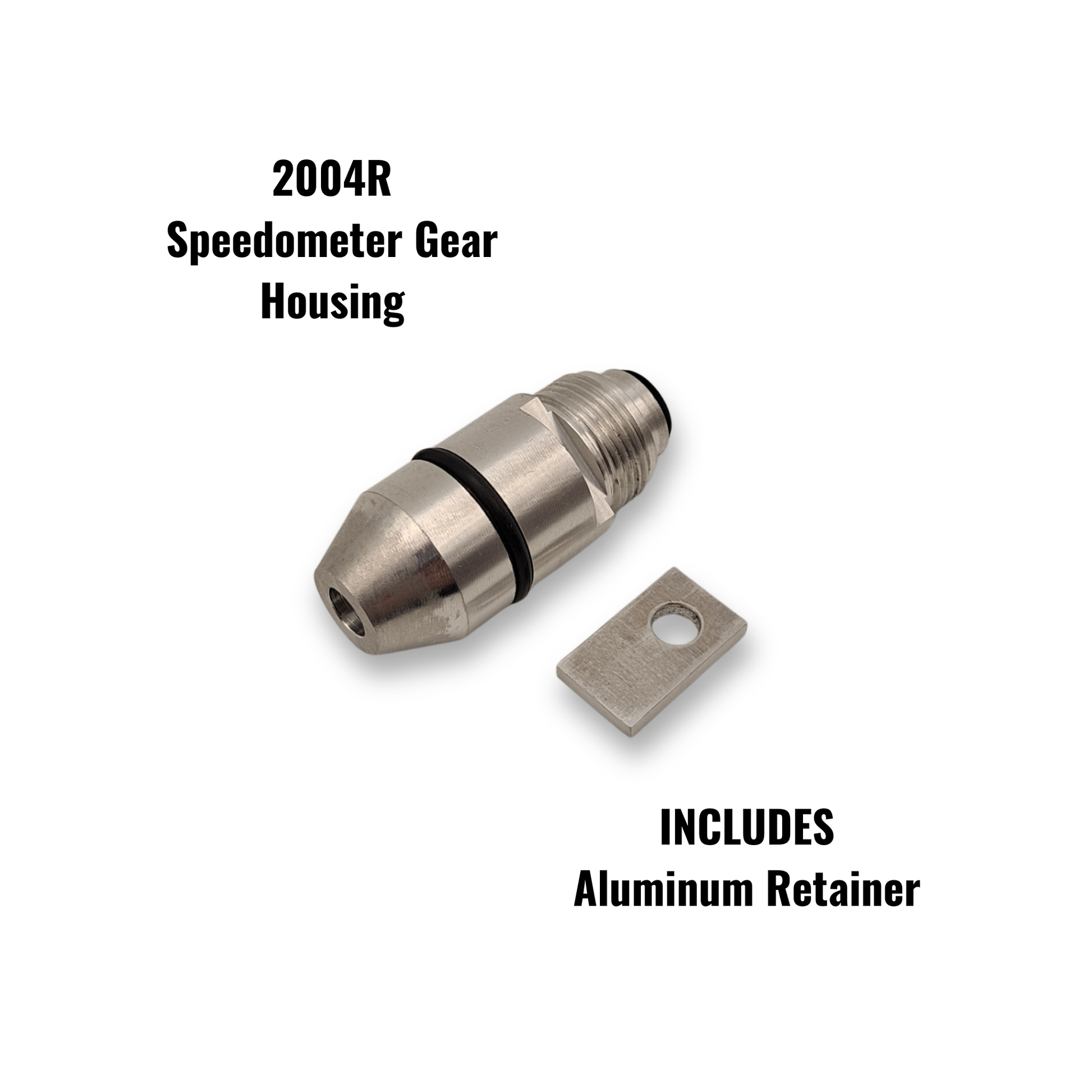

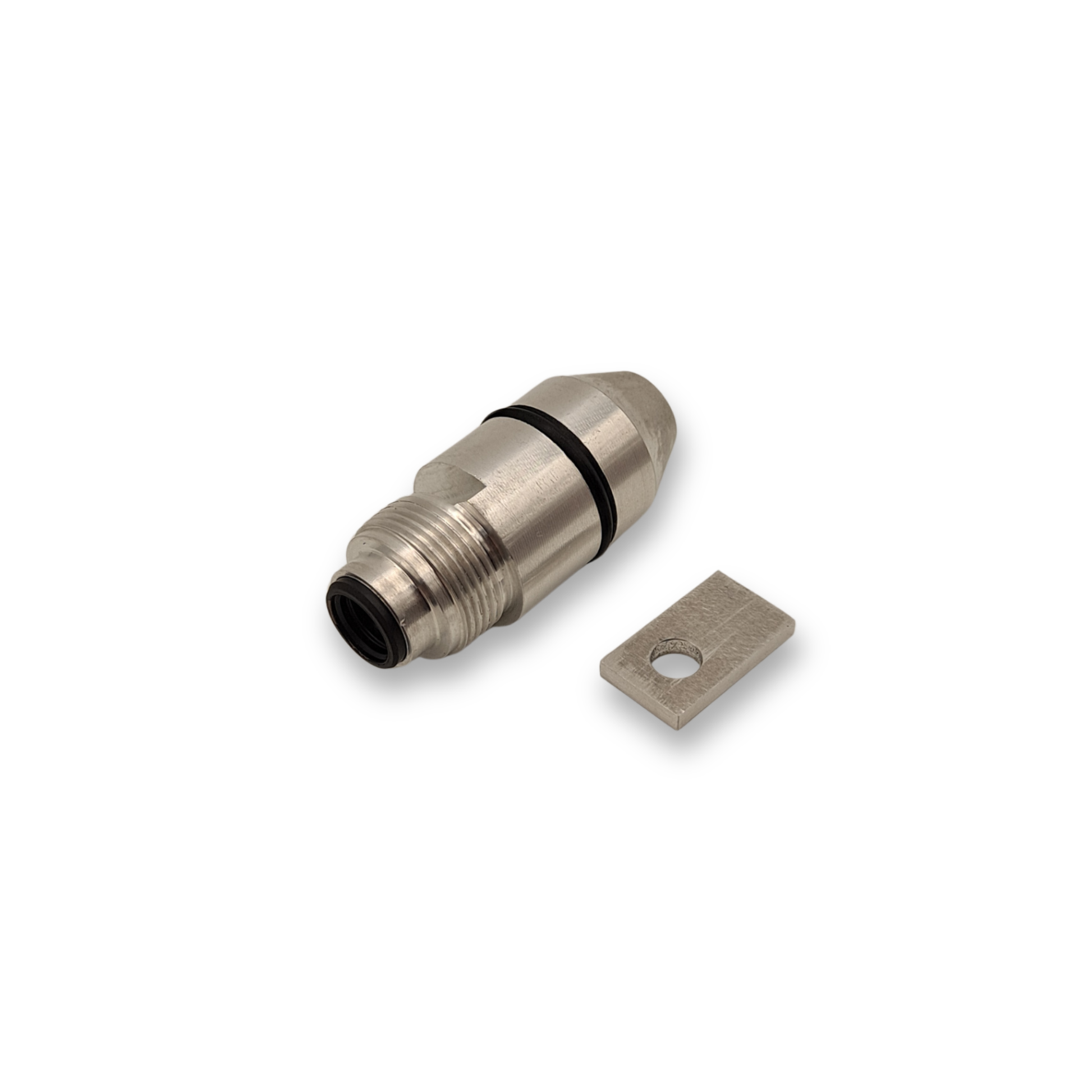

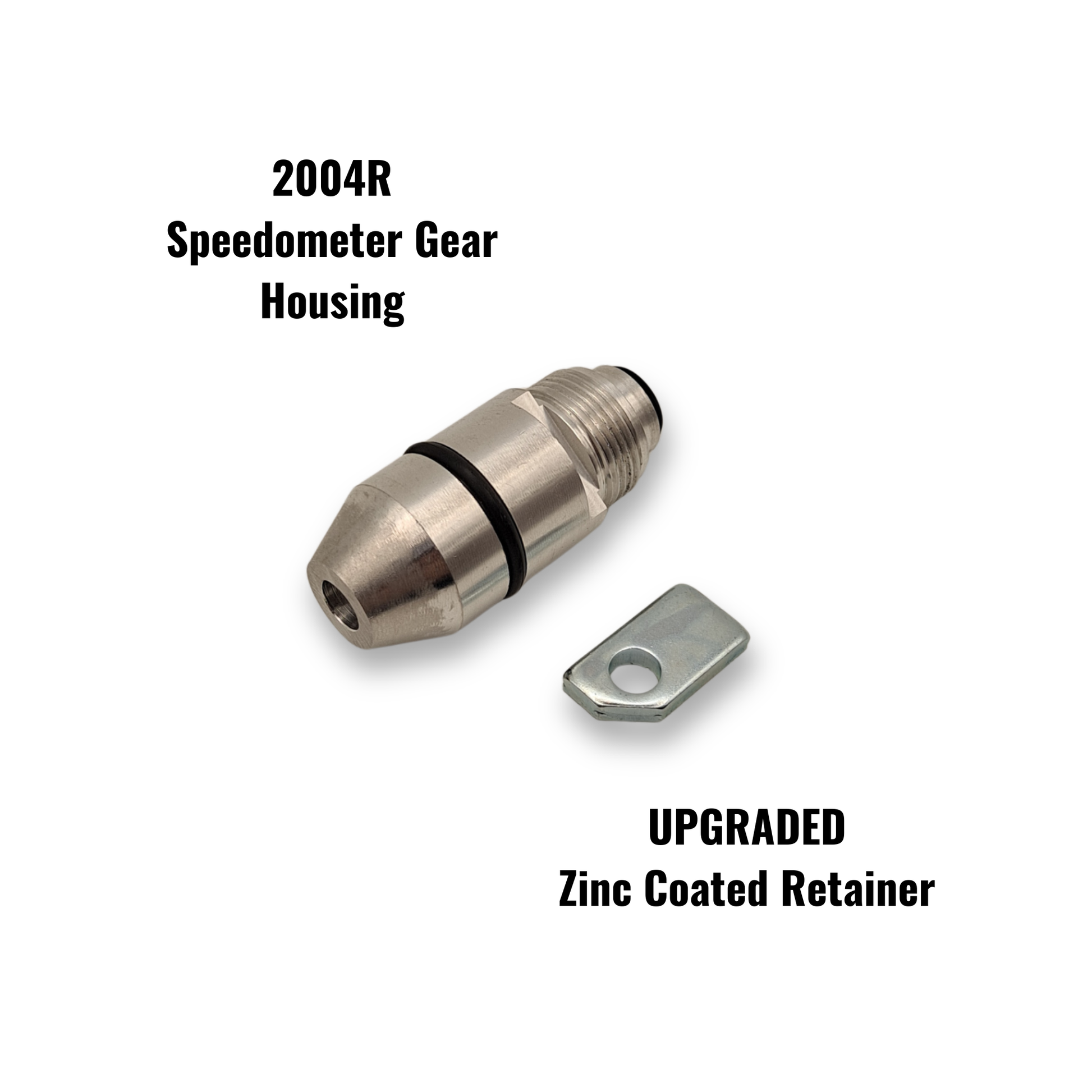

Regular aluminum construction, or upgraded zinc coated construction.

SHIPS FREE in the USA!
(Economy shipping in lower 48 states only)

+ Billet Aluminum Construction.

Machined and built in the USA!

This housing includes the outer O-ring as well as the inner gear seal.

+ Aftermarket Direct Replacement.

Interchange Part Number: GM 25524925

Fits automatic 200-4R transmissions with the 1" hole in the tail.

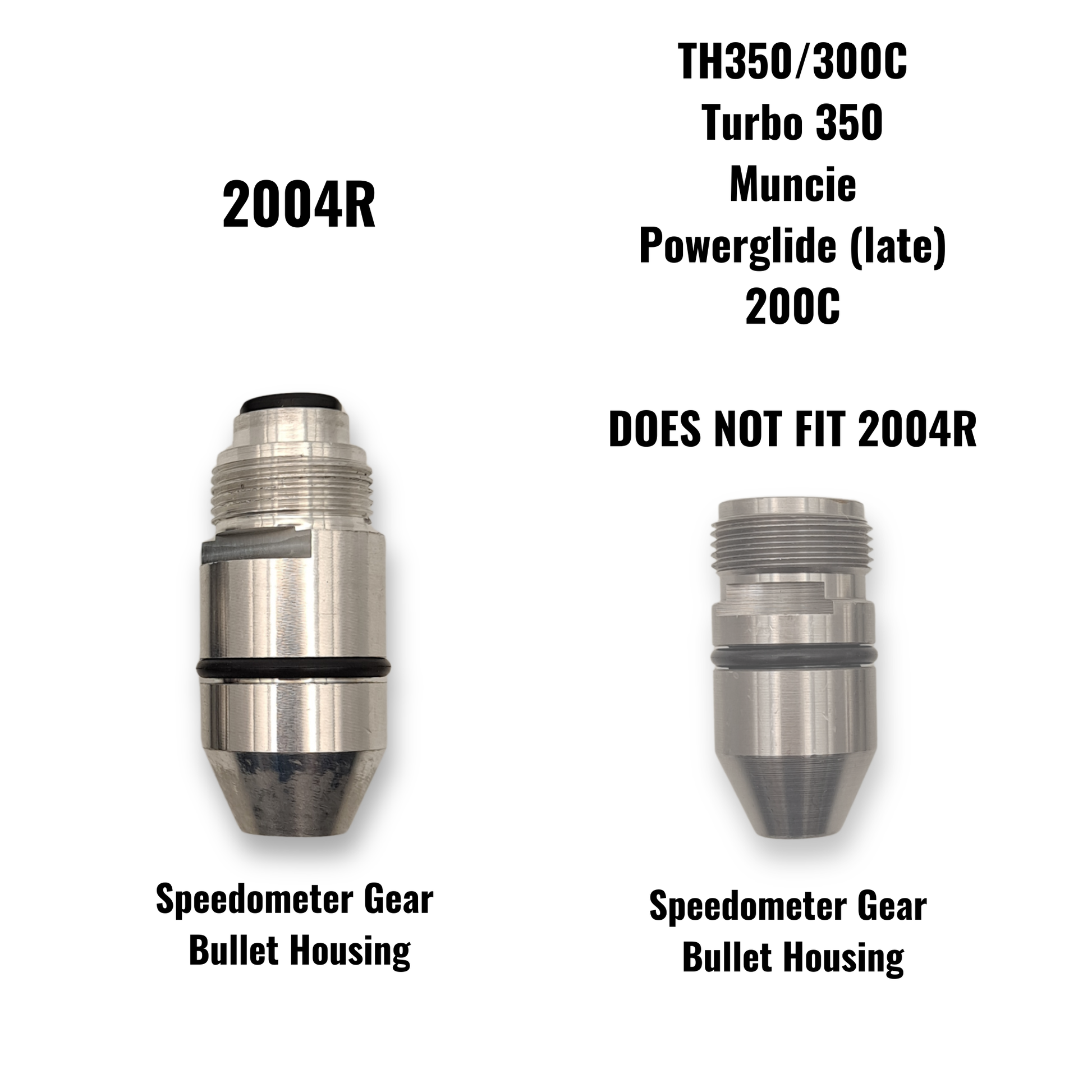

(Will NOT fit TH350/300C, 200C, Muncie or late Powerglide applications.)

Model fitment for this 2004r speedometer gear housing includes Grand National, Buick Regal, Oldsmobile Cutlass Supreme, Pontiac Bonneville and Pontiac Trans Am.

Use this speedometer gear housing with the following 2004r speedometer gears:

Chevy GM / BOP speedometer driven gears available -HERE-

26 tooth driven, brown

29 tooth driven, green

27 tooth driven, black

30 tooth driven, blue / teal

28 tooth driven, Yellow

31 tooth driven, white / beige / tan

Chevy GM / BOP 200-4R drive gears/governor gears available -HERE-

(Do not acquire a gear based on color alone, if you could use some assistance feel free to reach out to jim@speedometer.world )

10 tooth drive

Green Governor Gear

12 tooth

Red Maroon Governor Gear

2004R Speedometer Gear Chart
