200-4R Speedometer Gear Recalibration Set, 2x Drive Gear, 6x Driven Gear, Housing + Retainer
200-4R Speedometer Gear Recalibration Set, 2x Drive Gear, 6x Driven Gear, Housing + Retainer
Couldn't load pickup availability

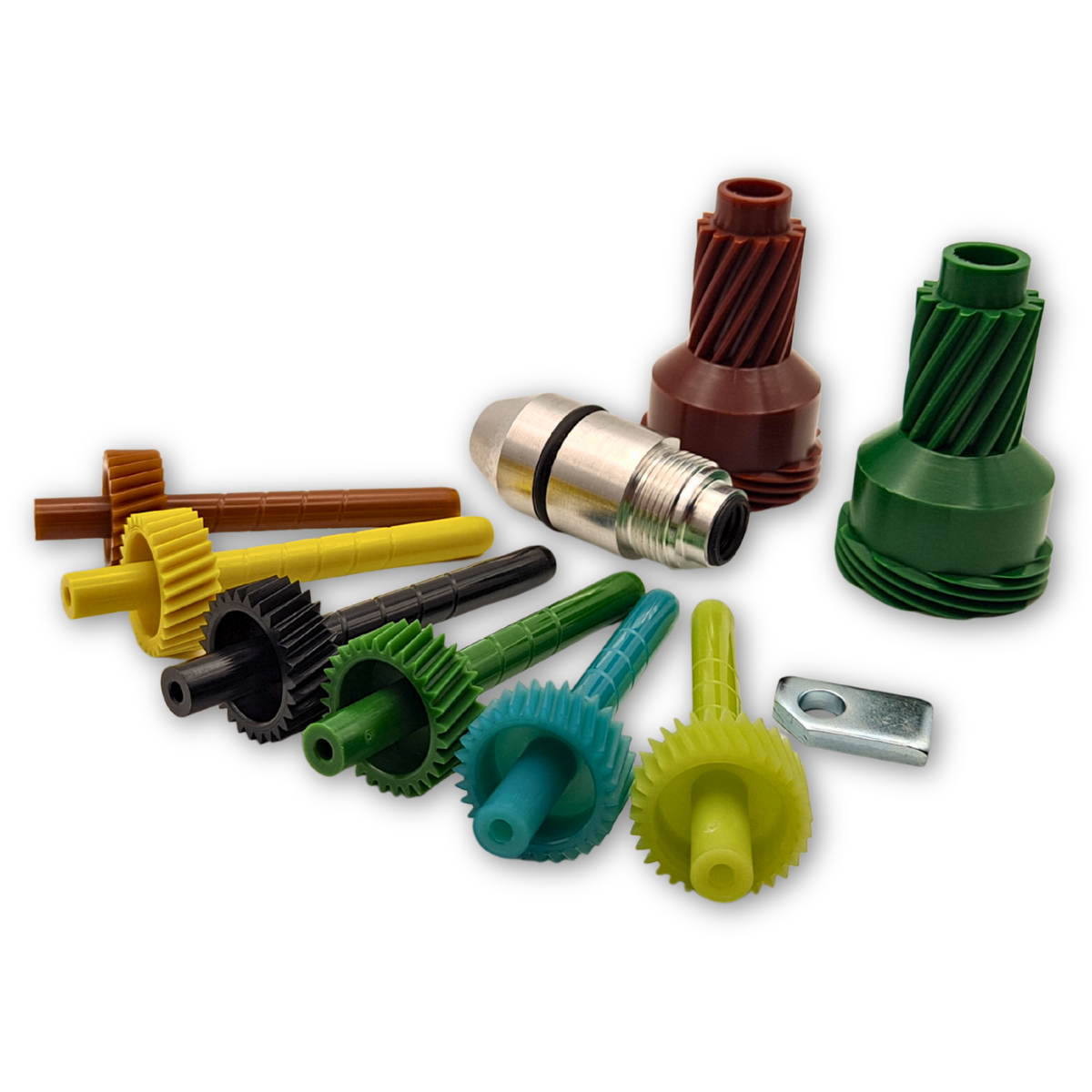

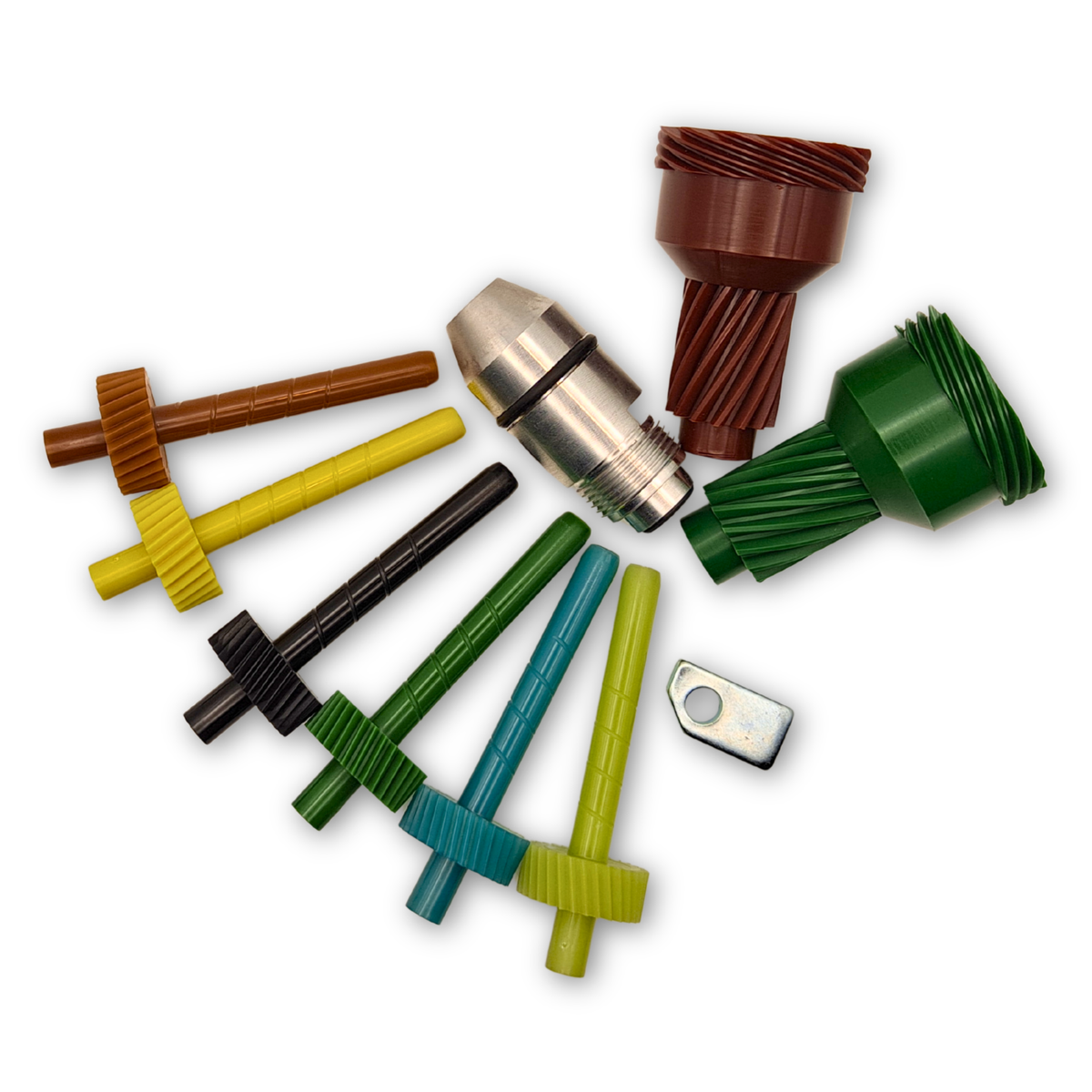

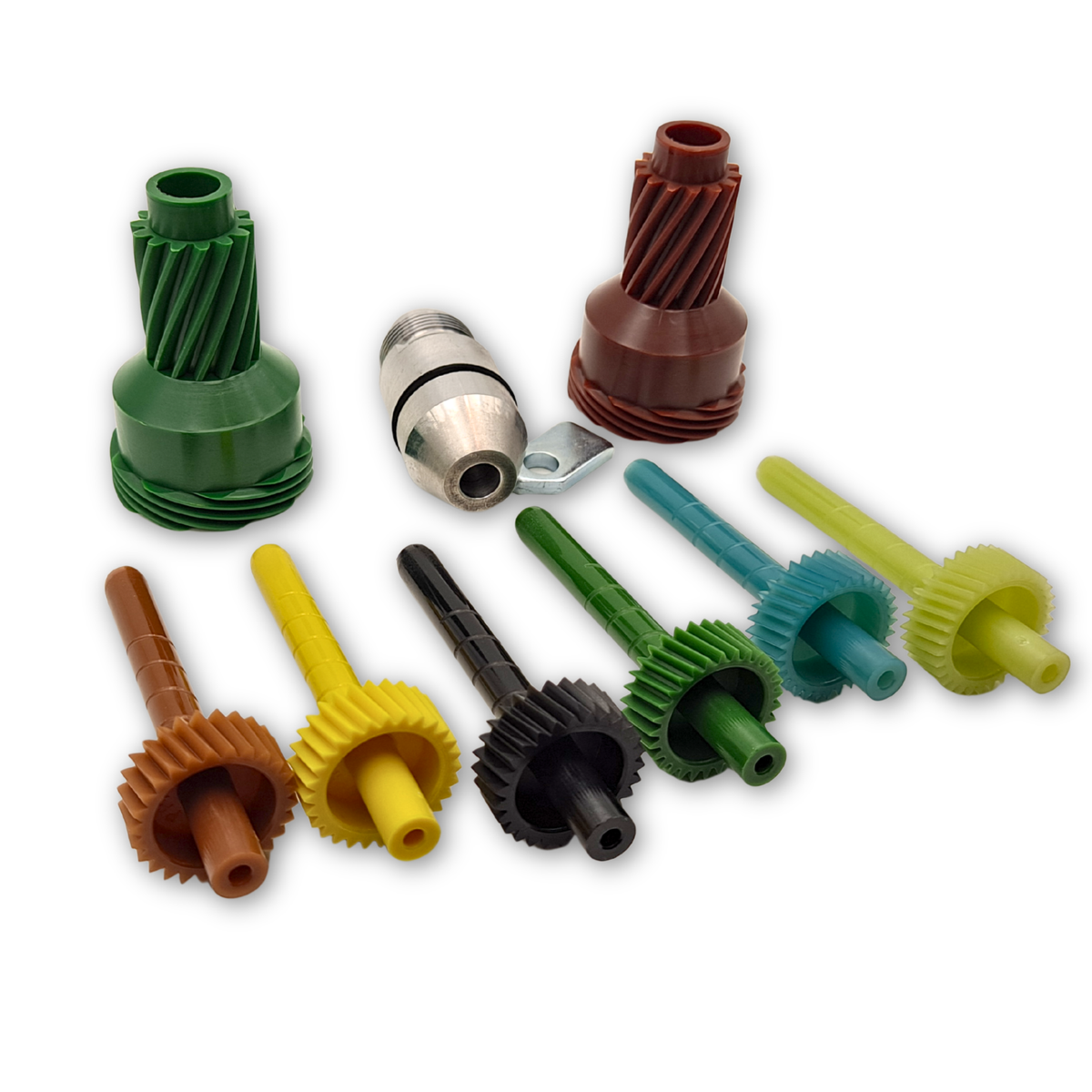

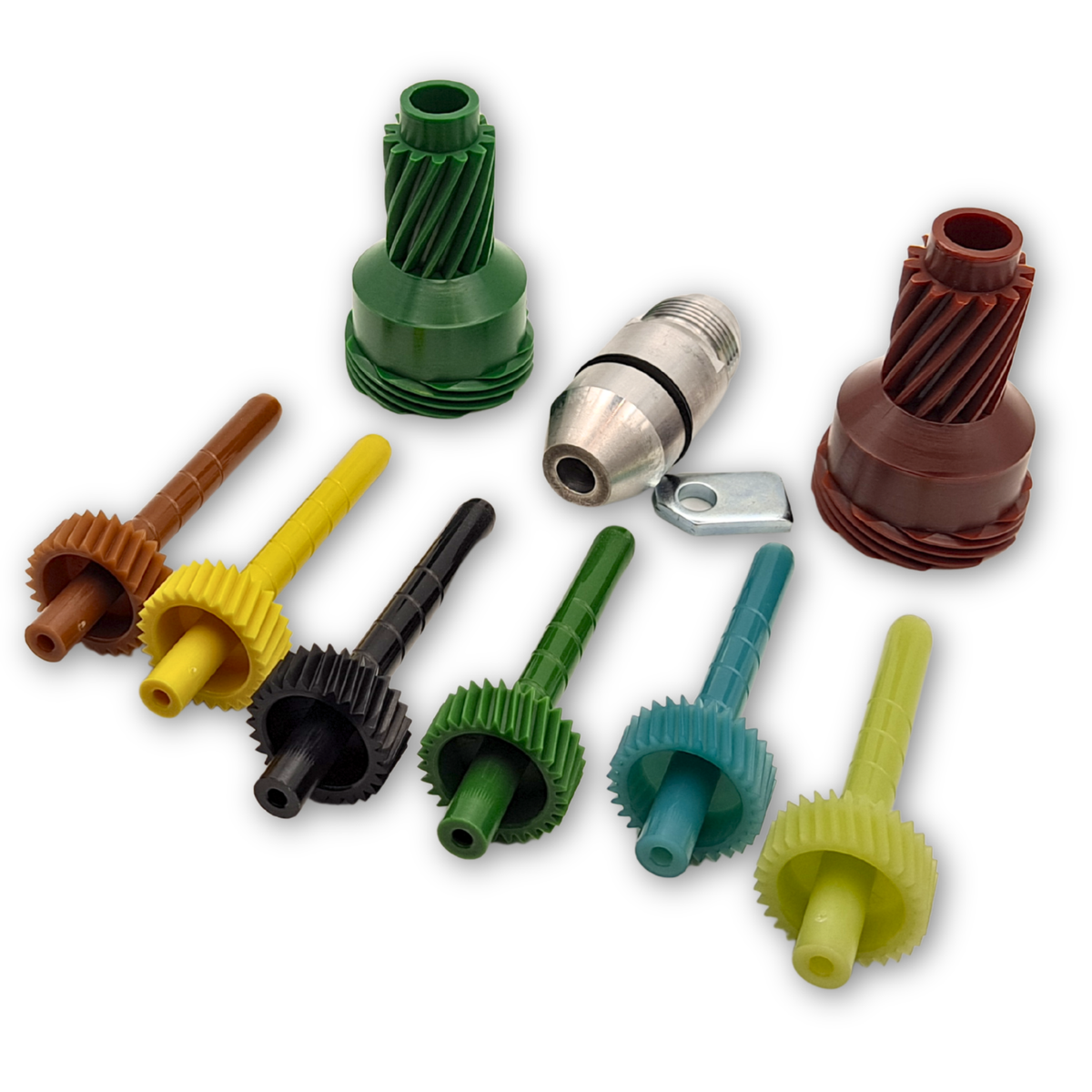

Speedometer Gear Recalibration Set for 2004R transmissions, includes 2x Governor Drive Gears, 6x Driven Gears, Billet Aluminum Housing + Upgraded Housing Retainer.
Tooth Count: 10 tooth + 12 tooth Drive, 26-27-28-29-30-31 tooth Driven
Color: Green + Maroon, Brown, Black, Yellow, Green, Teal, Neutral
+ New Parts, Never Used!
+ Heavy Duty Plastic Gear Construction.
Manufactured with smooth, non-grainy, sturdy and durable materials.
Interchange part number: 8639906, 8634935, 25502669, 410731, 416765, 403999, 561035, 403417
----------
SHIPS FREE in the USA!
(Economy USPS Shipping)
These green/maroon drive gears are part of the governor assembly, which is located inside the transmission oil pan.
Chevy GM/ BOP 200-4R driven gear tooth counts and colors:
(Do not acquire a gear based on color alone, if you could use some assistance feel free to reach out to jim@speedometer.world )
|
|
|
|
27 tooth = Black |
30 tooth = Blue / Teal |
|
28 tooth = Yellow |
31 tooth = White / Beige / Tan |
Chevy GM/ BOP 200-4R drive gear tooth counts and colors:
(Do not acquire a gear based on color alone, if you could use some assistance feel free to reach out to jim@speedometer.world )
|
|
|
WE CAN HELP!
📧 Having trouble with your speedometer not agreeing with the GPS?
Send us a brief message with your current application specs and we can help you mastermind a solution!
